| Item No |
Dimensions (WxDxH) |
Capacity (L) |
Temp. Range (°C) |

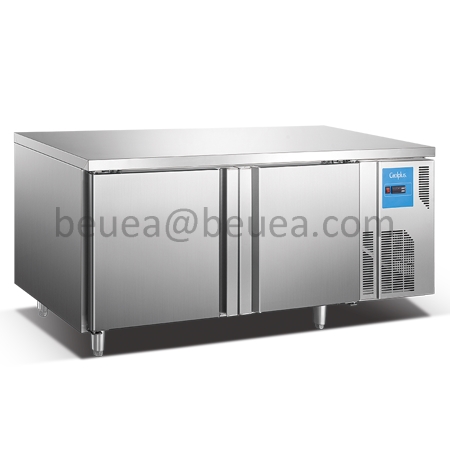

| TG14L2 | TG14L2G |
1350x700x850 |
260 |
0~10 |
| TD14L2 |
1350x700x850 |
260 |
-18~-22 |

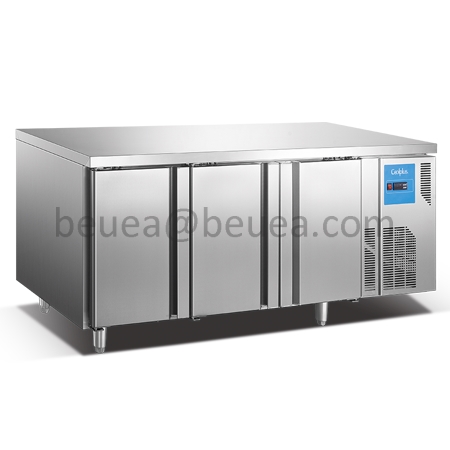

| TG18L3 | TG18L3G |
1800x700x850 |
390 |
0~10 |
| TD18L3 |
1800x700x850 |
390 |
-18~-22 |

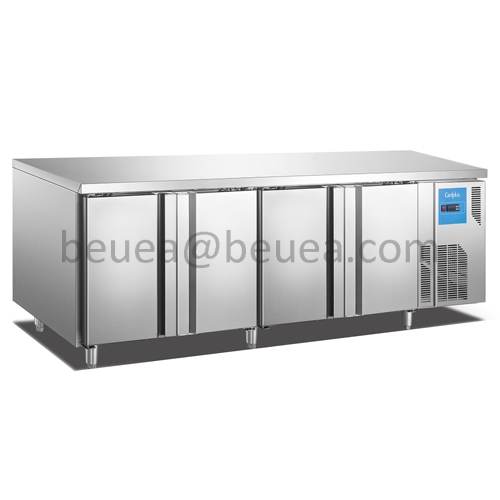

| TG23L4 | TG23L4G |
2250x700x850 |
520 |
0~10 |
| TD23L4 |
2250x700x850 |
520 |
-18~-22 |
| *** |
*** |
*** |
*** |

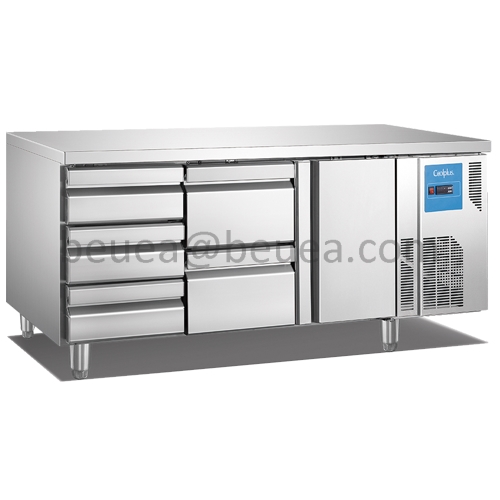

| TG18L1D5 |
1800x700x850 |
390 |
0~10 |
| *** |
*** |
*** |
*** |
| TG14D4-S |
1350x700x650 |
200 |
0~10 |

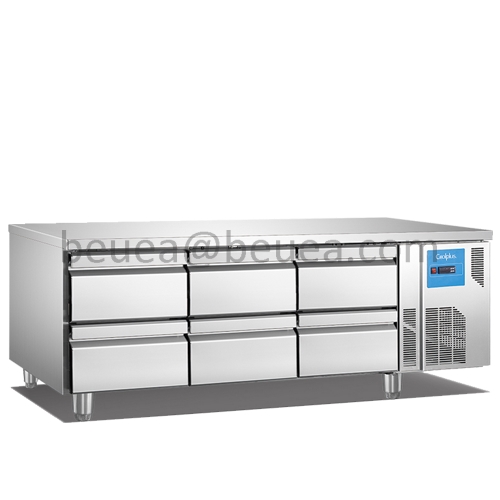

| TG18D6-S |
1800x700x650 |
300 |
0~10 |
| TG23D8-S |
2250x700x650 |
400 |
0~10 |
| *** |
*** |
*** |
*** |

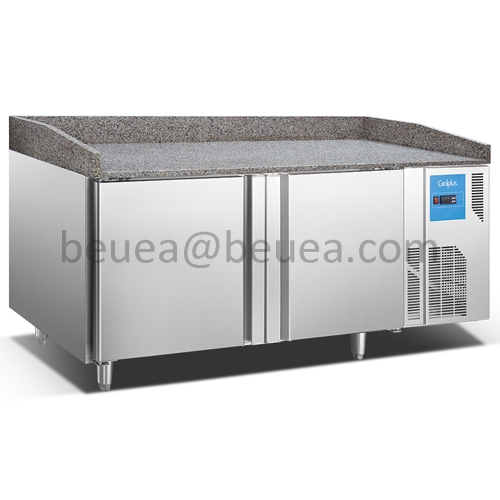

| TG14L2PZ |
1350x700x985 |
260 |
0~10 |

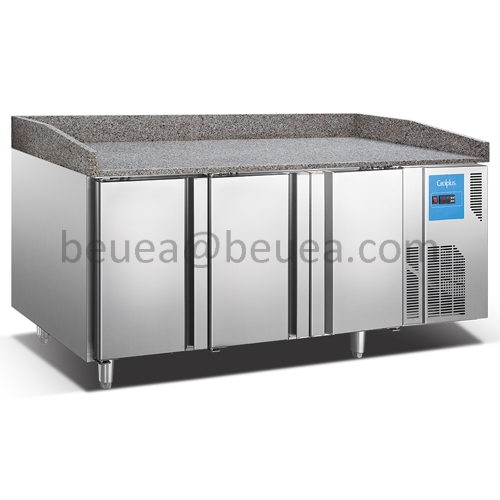

| TG18L3PZ |
1800x700x985 |
390 |
0~10 |

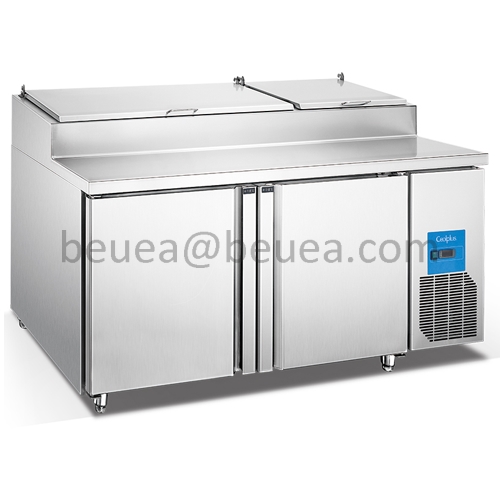

| TG14L2PH |
1350x700x1020 |
260 |
0~10 |

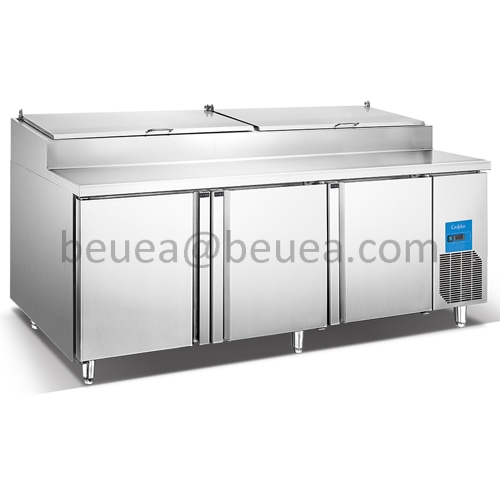

| TG18L3PH |
1800x700x1020 |
390 |
0~10 |
* L2 means "2 Solid Door"
* L2G means "2 Glass Door"
* D4 means "2 drawer set + 2 drawer set"
* S means "650mm Hight"
- 43°C working temperature
- Monoblock cooling system
- 60 mm insulation thickness
- 40 Kg/M³ Ecology friendly insulation material
- Plastic door frame with replaceable heater
- CFC free refrigerant R290
- Exterior & Interior 304 stainless steel
- Shelf brackets built in the walls
- Air guide on top wall
- Embraco compressor
- Digital thermostat
- Low noise fan motor
- Auto defrosting system
- Automatic closing door
- Adjustable plastic coated shelves, 530x325mm
- Removable door gasket
- Side panel for air circulation
- Voltage: 220V/50Hz, 220V/60Hz, 110V/60Hz
- Refrigerant: R290, R134a, R404A
- Material: 304, 201 stainless steel
- Door: Solid door, glass door
- Drawer Set: 2 drawer set, 3 drawer set, stainless steel drawer slider
- Shelf: Plastic coated shelf, stainless steel shelf
- Feet: Adjustable feet, Wheels
- Backsplash: 20mm thickness, 50-150mm hight, round corner
